DIR Starter: Apeks WTX + XTX50 Long Hose Regulator Package
All of our DIR starter packages are future-proof for twinset diving with the addition of a second 1st stage and a doubles wing.
This package includes the fully set-up Apeks WTX-D30 or D40 Wing System. It is complemented with the Apeks XTX50 / DST regulator with a backup XTX40, ensuring excellent breathing performance in various conditions. Finally, the robust Apoeks TEK SPG provides reliable pressure readings.

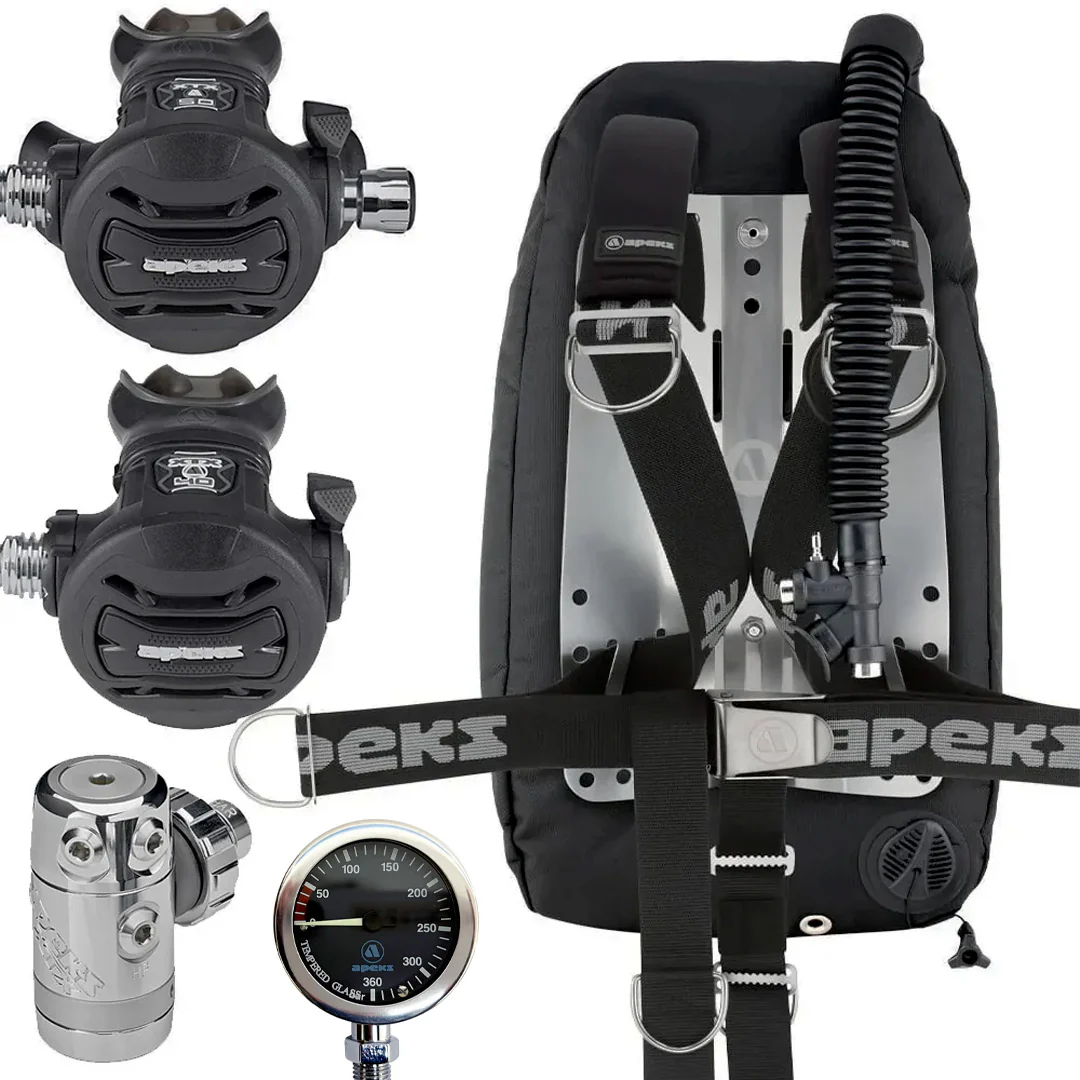

You will get:
- Apeks WTX-D30 or D40 Wing with inflator hose
- Apeks Aluminum or Stainless Steel Backplate with Deluxe One Piece Harness

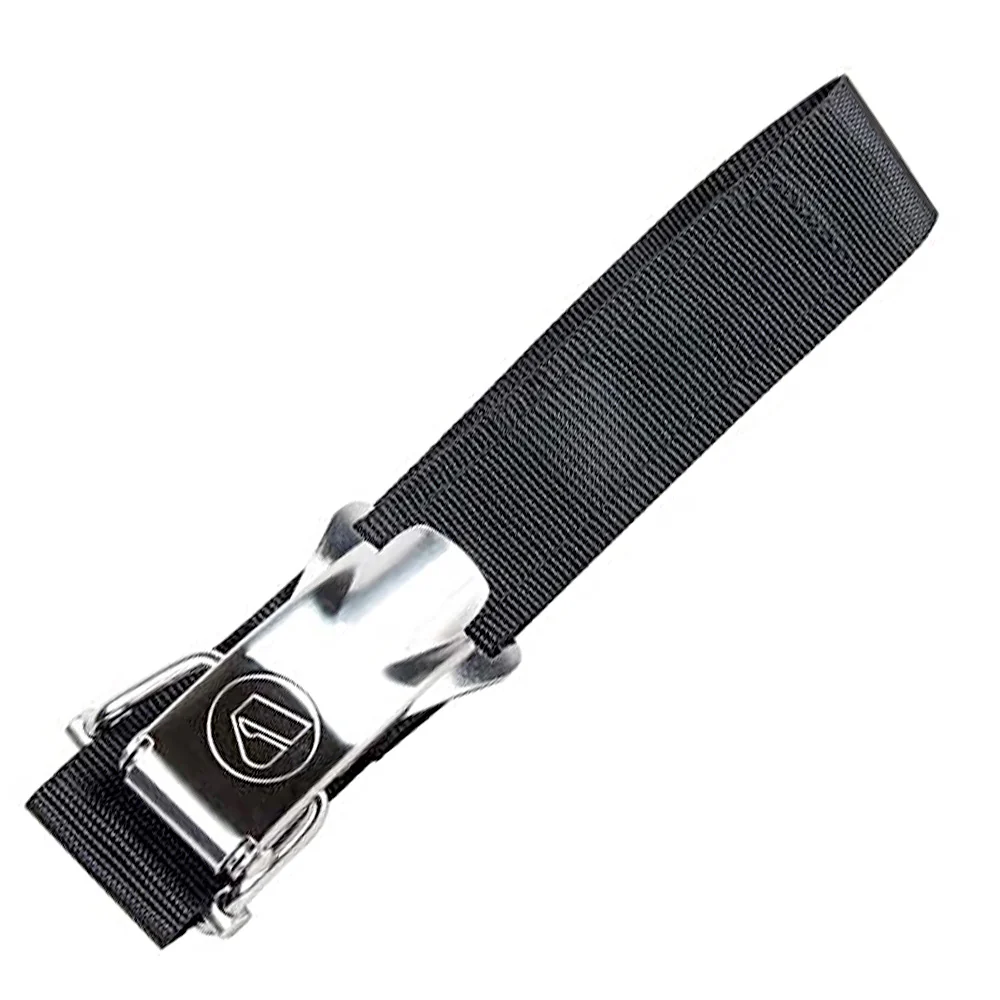

- Two Apeks Cam Bands with stainless steel buckles
- Apeks DST first stage (DIN)
- Apeks XTX50 second stage primary regulator
- Apeks XTX40 second stage backup regulator
- Apeks TEK SPG
- 210cm (7') primary regulator hose
- 24" backup regulator hose
- 26" high pressure hose
Apeks WTX Single Tank Wing System
The Apeks single tank wing with backplate and harness is a fully set-up Apeks WTX Single Tank Wing System, all ready to go.
You have two backplate and wing options. Choose from stainless steel or a lighter aluminium backplate. For these fully set up systems, Apeks offers either WTX-D40 wing providing 40lbs lift or the smaller WTX-D30 with 30lbs lift.
First, consider your backplate preference. The stainless steel option offers rugged durability. It is ideal for more demanding dives. Second, the aluminium backplate provides a lighter-weight alternative. This is great for travel.
Next, select your wing size. The WTX-D40 is suitable for most divers. It offers ample lift. However, the WTX-D30 is a good choice for smaller divers. It is also suitable for warmer water diving. Finally, this system is designed for single-tank configurations.
Apeks designed this WTX-D Single Cylinder Wing with a narrow profile. Consequently, this narrow design allows the cylinder to nest deeply inside.
- K-style inflator with brass buttons
- Low profile 16” oval-shaped corrugated hose
- Safety cable prevents hyper-extension inside the corrugated hose
- Off-centre elbow positioning avoids regulator 1st stage interference
- Low profile flat dump valve positioned front, lower-left
- Two large drain grommets
- Centre mesh drain panel
- Tank stabiliser bars
- Exterior material: 1000D Armorshield Cordura
- Inner air cell: 22mil (.022) thick black urethane
- Lift capacities: WTX-D30 30lbs / WTX-D40 40lbs
Apeks Harness
This strong, simple Apeks Deluxe One-Piece Webbed Harness readily supports a fully rigged diver. Moreover, you can easily customise it. This harness is designed for comfort and performance.
Firstly, this harness includes 2-inch stiff webbing. It also has a center grommet for added strength. Secondly, a 2” wide crotch strap ensures a secure and comfortable fit.
Furthermore, six stainless 2” D-rings offer ample attachment points. For additional comfort, two neoprene shoulder protectors are included. Additionally, two elastic retaining loops reside on the shoulders. Finally, one more loop is located on the crotch strap.
Subsequently, a heavy-duty stainless waist buckle ensures secure closure. This harness is built for durability and reliability.
- Durable Construction: Strong 2-inch webbing with center grommet.
- Customisable: Easily add your choice of hardware.
- Comfortable Design: Includes neoprene shoulder protectors.
- Secure Fit: Features a 2” crotch strap.
-
Ample Attachment Points: Six stainless 2” D-rings.
Apeks Backplate
The Apeks Backplate comes in either lightweight aluminium or rugged stainless steel. Aluminium backplate weighs approximately 753g and stainless steel approximately 2.2kg.
- Secure Cylinder Mounting: Four upper and four lower slots for cam bands.
- Enhanced Stability: Four additional slots provide superior lateral stability.
- Adjustable Height: Three top holes allow for wing and cylinder adjustments.
- Accommodates Misalignment: Lower center slot for misaligned bolts.
- Accessory Mounting: Perimeter and bottom holes for attaching accessories.
- Crotch Strap Slot: Features a 2" wide crotch strap slot.
Apeks XTX50 Single Tank Long Hose Regulator
The coldwater-rated Apeks XTX50 Single Tank Long Hose Regulator Set is a classic set with a long hose. We have combined a Apeks DST first stage with a rotating turret for great hose routing with an adjustable XTX50 second stage as the main and a non-adjustable XTX40 as a backup.
This popular regulator provides optimal hose routing. Four medium-pressure ports are mounted on a rotating turret. This eliminates sharp bends in the hose.
XTX50 Second Stage
The classic and popular Apeks XTX50 Second Stage with a breathing effort adjustment for precise control of breathing effort.
XTX50’s second stage can be converted from a right-handed hose configuration, as supplied, to a left-handed one. Changing the regulator to a left-handed configuration is quick and simple and can be performed by any Apeks Authorised Service Technician.
The XTX50 Second Stage incorporates the feature of Diver Changeable Exhausts system. This system allows the diver to change from a small exhaust tee to a large one. This gives the user a choice of the wider exhaust tee for minimal bubble interference, essential for underwater photography, or the narrow exhaust tee for a smaller compact and comfortable set-up.
The Apeks XTX50 second stage incorporates a two-shot high-strength composite front cover, improving the durability of the most vulnerable part of the demand valve.
The ergonomic Venturi lever of the Apeks XTX50 Second Stage has been designed to reduce the amount of grit ingress.
A silicone exhaust valve has been used on the Apeks XTX50 Second Stage, improving breathing performance.
- Adjustable breathing adjustment control
- Integrated venturi control
- Pneumatically balanced valve design
- Micro Adjuster
- Suitable for cold water use
XTX40 Second Stage
Apeks XTX40 Second Stage is highly recommended primary or backup regulator with pneumatically balanced second stage and venturi control.
XTX40’s second stage can be converted from a right-handed hose configuration, as supplied, to a left-handed one. This feature is known as the Reversible Venturi System.
The XTX40 Second Stage incorporates the feature of Diver Changeable Exhausts system. This gives the user a choice of the wider exhaust tee for minimal bubble interference, essential for underwater photography, or the narrow exhaust tee for a smaller compact and comfortable set-up.
- Integrated venturi control
- Pneumatically balanced valve design
- Suitable for cold and warm water use
Apeks DST First Stage
The Apeks DST first stage has rotating turret reduces hose tension and allows for optimum hose positions and comfort.
Unique over-balanced, diaphragm design - as the diver descends, the over-balancing feature allows the medium pressure gas in the hose to increase at a rate faster than ambient. This results in superior performance at depth.
A dry chamber prevents water from coming into contact with the DST first stage spring to stop freezing.
- Environmentally sealed
- Dry sealed balanced swivel turret first stage
- 4 MP ports mounted on a swivel turret
- 2 HP ports on the body
- Finished in highly polished chrome
Apeks TEK SPG
The 52mm Apeks TEK SPG is a high-quality chrome-plated submersible pressure gauge with a black face to help reduce glare and to preserve night vision in low-light environments, i.e. inside a cave, mine or wreck.
The dial has luminescent numbers, and the hand glows in the dark when charged with light.
