Apeks MTX-R Sidemount Regulator Set - Ready to Dive

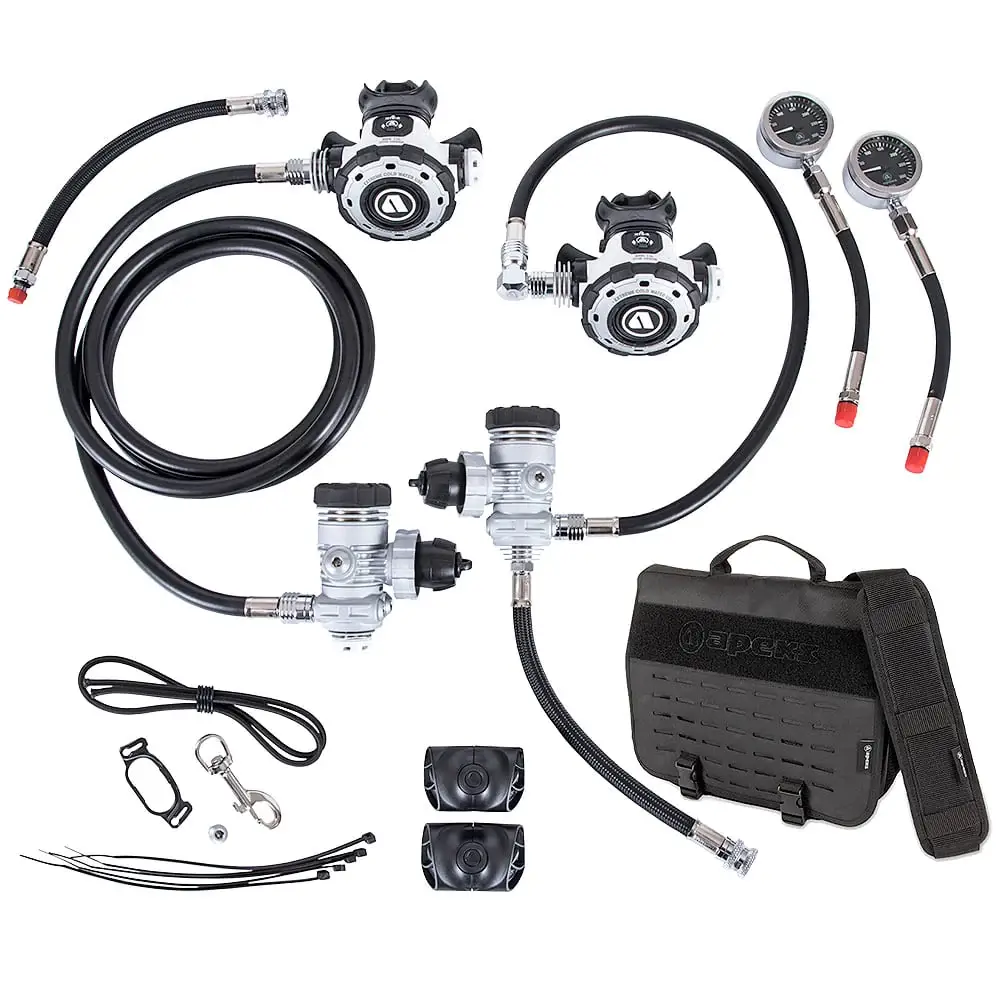

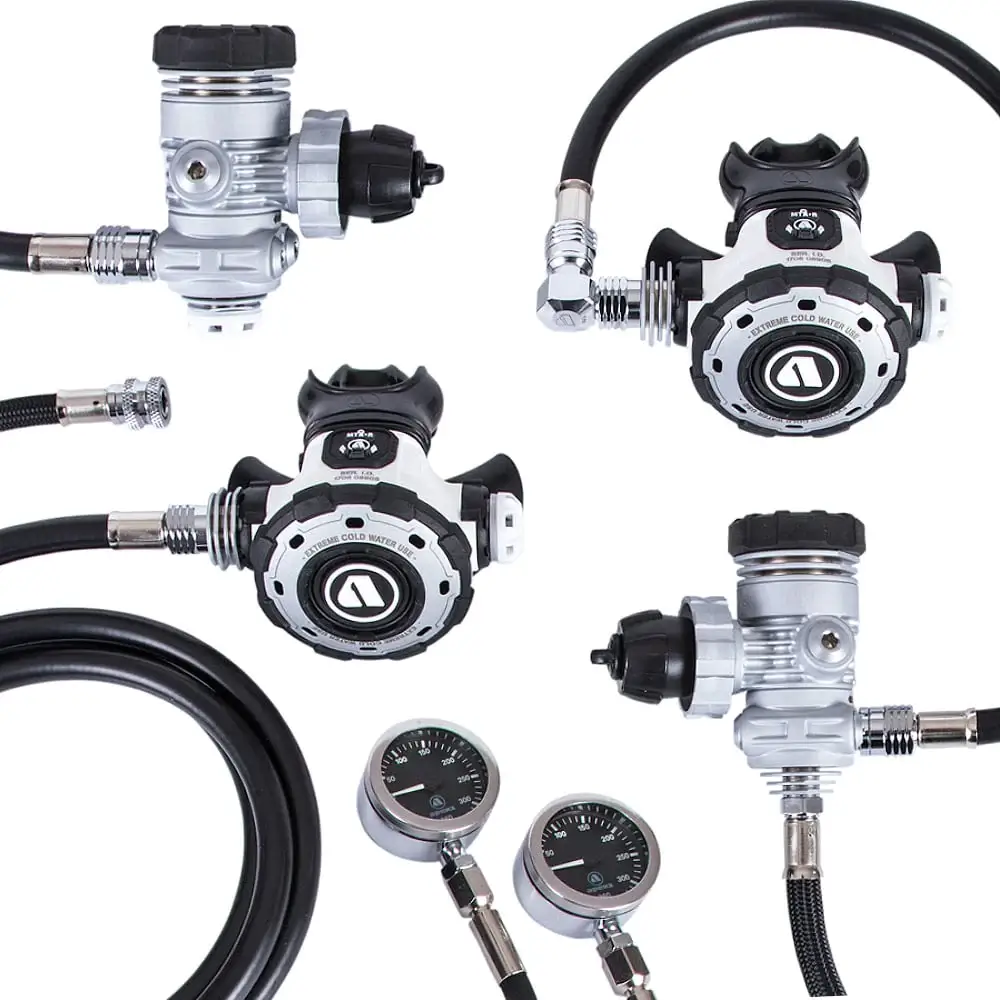

MTX-R Sidemount Set Includes:

• 2 x MTX-R DIN 1st stages with 5 port swivel turrets
• 2 x MTX-R second stages
• 210cm double swivel hose
• 61cm double swivel hose
• 2 x 25cm MP inflation hoses
• 2 x TEK pressure gauges with 18cm hoses
• 1 x 90° elbow fitting
• 1 x stainless steel bolt snap
• 2 sets of short exhaust ports
• Bungee Connector System

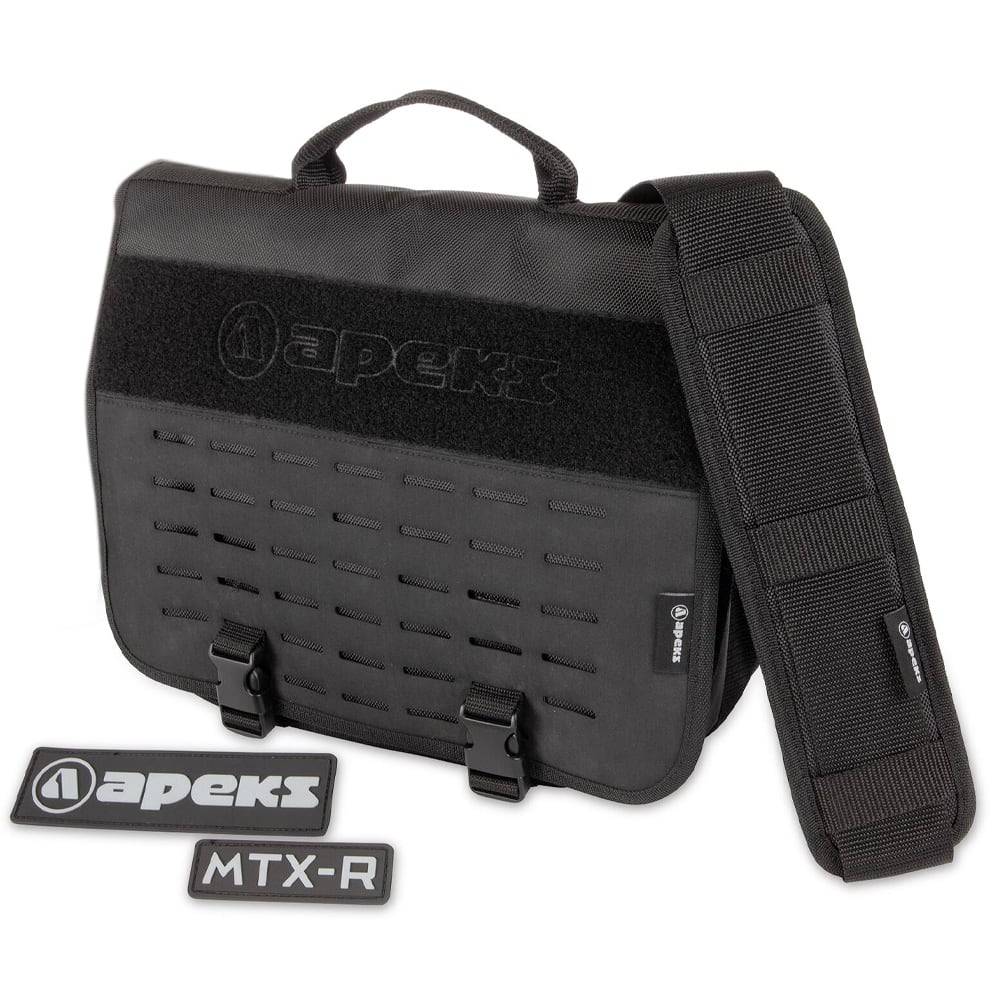

• Regulator bag

Military Heritage

The military has used Apeks regulators for over 20 years. Apeks has used this expertise in a new military specification regulator. This regulator is exclusively for the consumer market. The “M” in MTX stands for Military. The “R” stands for the recreational version.

The MTX-R is based on the MTX. This regulator was developed per the US Navy's cold water test. Innovations mean the MTX-R performs in almost freezing water.

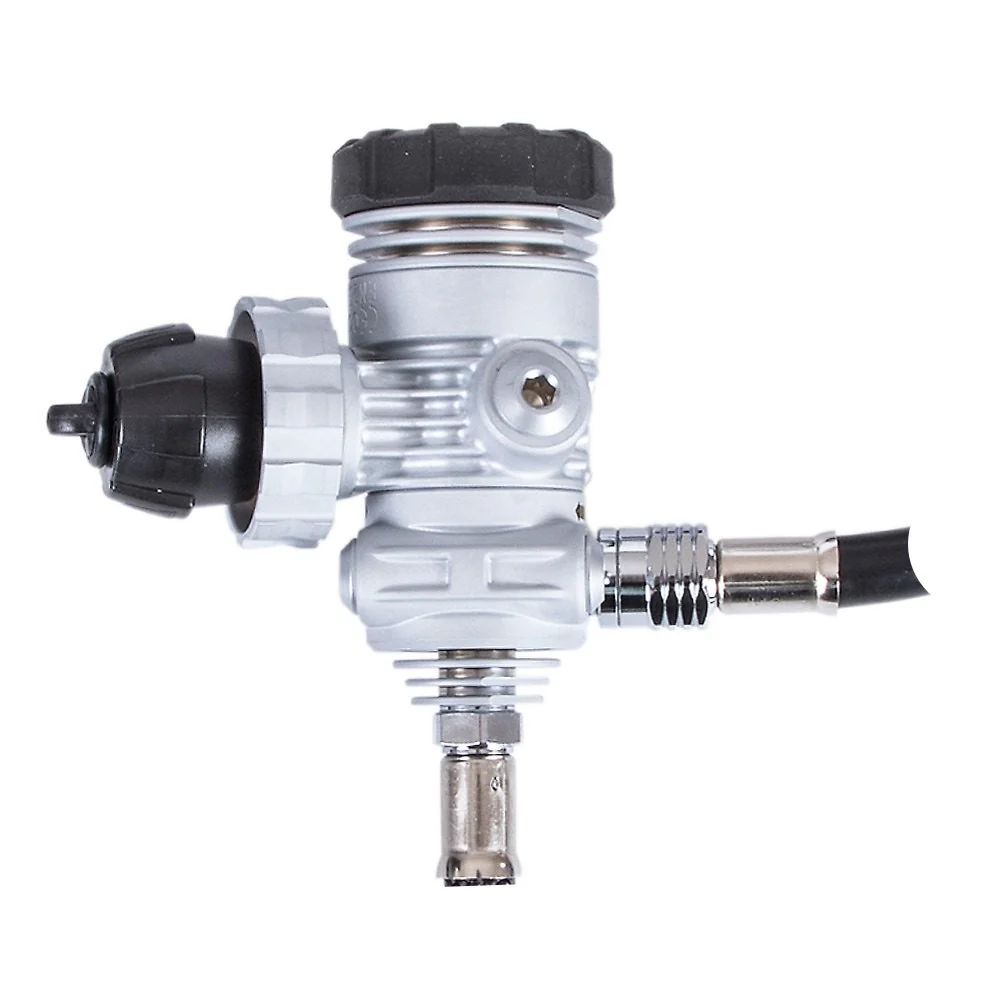

First Stages

The cold water-rated Apeks MTX-R First Stage features a unique over-balanced diaphragm. As the diver descends, this feature increases medium-pressure gas. This increase, furthermore, is faster than ambient pressure. Consequently, this results in superior performance at depth.

Moreover, the over-moulded endcap and environmental diaphragm safeguard the forged first-stage body. Additionally, this body provides maximum thermal performance. Likewise, the forged rotating turret features medium-pressure ports oriented in a parallel direction, thereby improving hose alignment. Finally, the angled high-pressure ports optimise hose routing and significantly allow an optional transmitter fitting to monitor gas pressure.

• Suitable for cold water use (below 10°C / 50°F)
• The 5th 3/8” UNF medium-pressure port has a protective bumper.
• The forged first-stage body has heat-exchanging ribs.
• The ribbed diaphragm clamp improves heat exchange.
• It is Nitrox/Oxygen compatible – Up to 40% O2 outside the EU.

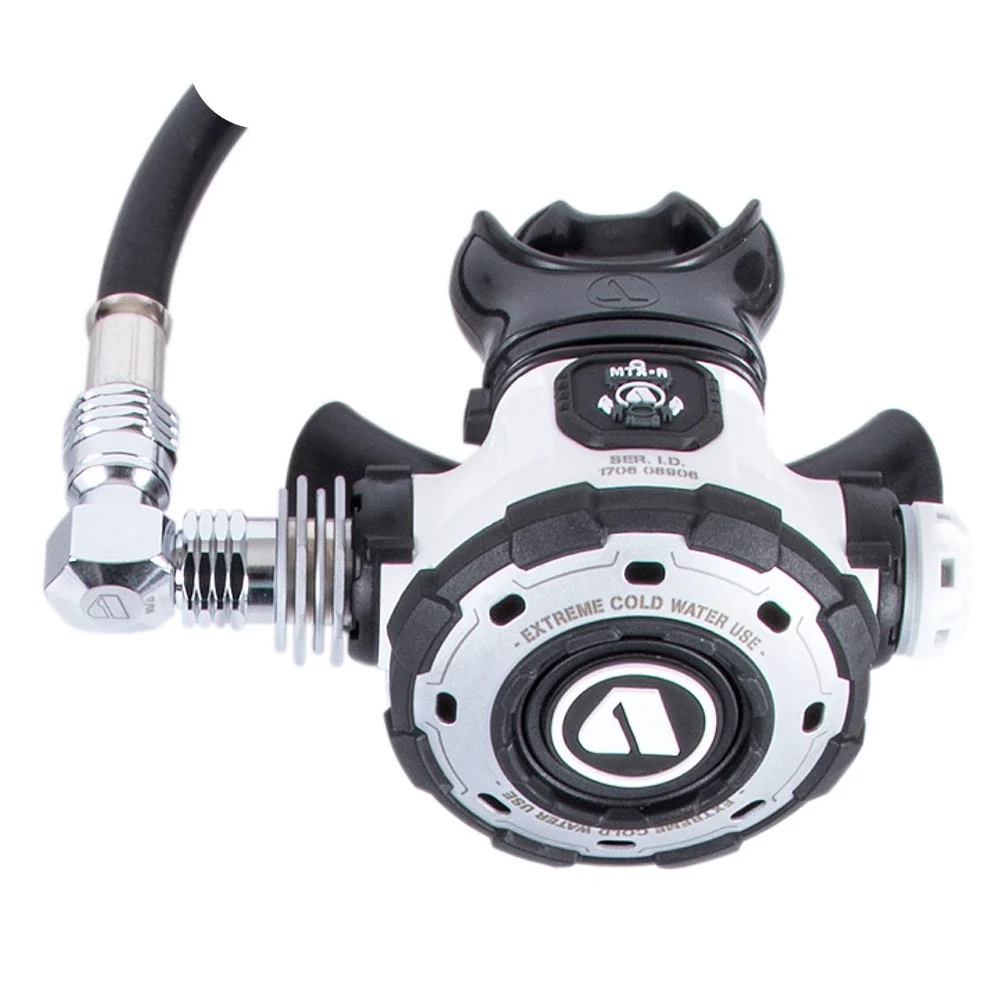

Second Stages

The Apeks MTX-R Second Stage performs in almost freezing water. Few other regulators, indeed, can boast this. Furthermore, the reversible second stage has a redesigned heat exchanger. This patented exchanger, specifically, surrounds the valve mechanism. Consequently, it dissipates the cold caused by gas expansion.

Furthermore, metal is integrated into the front cover. In addition, large protective elastomer bumpers safeguard the second stage. Finally, it is equipped with a Comfo-Bite mouthpiece. Consequently, this second stage is robust and durable, specifically designed for expedition use.

• Simple to use with no dive adjustment controls.
• Reduced chance of free flow.
• Reversible (left or right hand).
• Patented heat exchanger dissipates cold.
• Comfort-bite mouthpiece included.

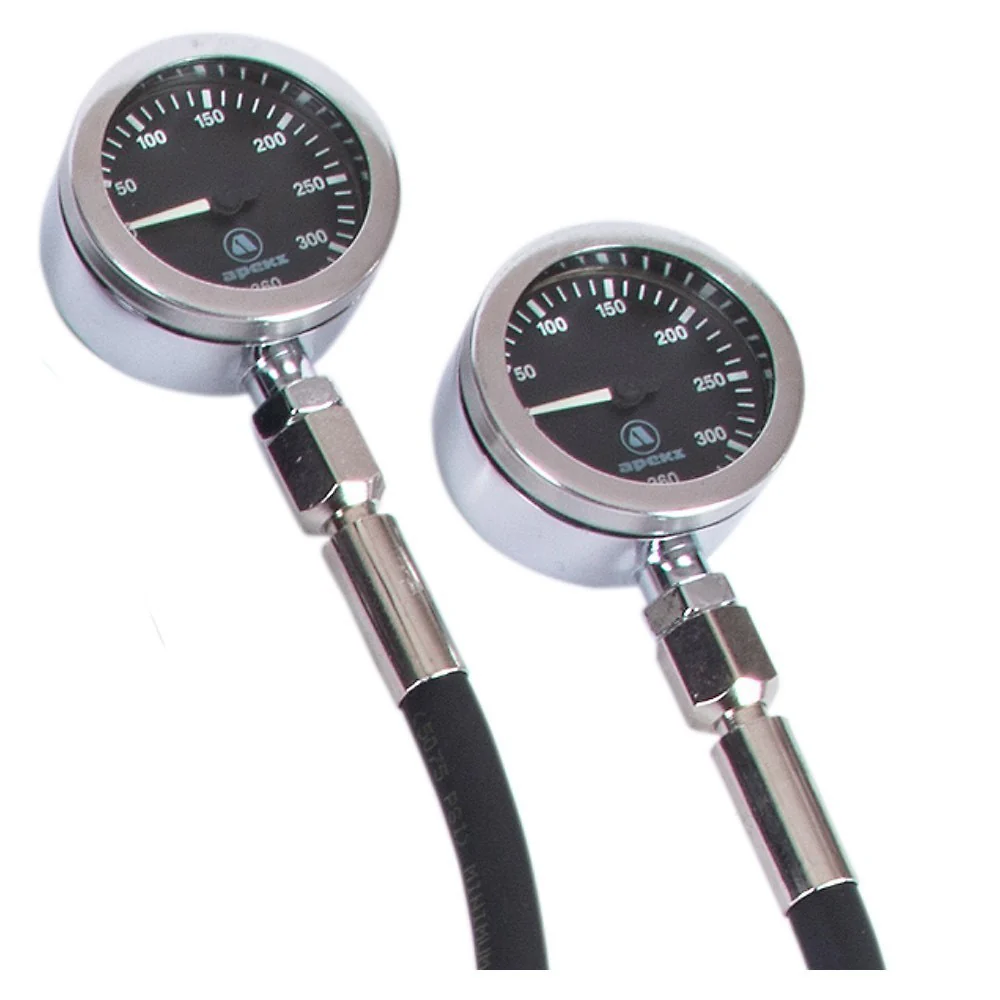

TEK SPG

The Apeks TEK SPG is a high quality chrome plated submersible pressure gauge. The black face to helps to reduce glare and to preserve night vision in low light environments i.e. inside a cave or wreck.

Luminescent numbers and hand glow in the dark when charged with a light.

• 0 – 360 bar
• Max working pressure 300 Bar
• High quality chrome plated SPG
• Tempered glass face
• 52mm diameter face
